Pocket Sensor Pod

Enclosure design concepts and ways to carry the pod.

Fifteen enclosure concepts, seven developed. Each houses a different subset of the kit: Raspberry Pi 5, air quality, GPS, light, thermal, AI and 360 cameras, LiDAR, touchscreen and battery.

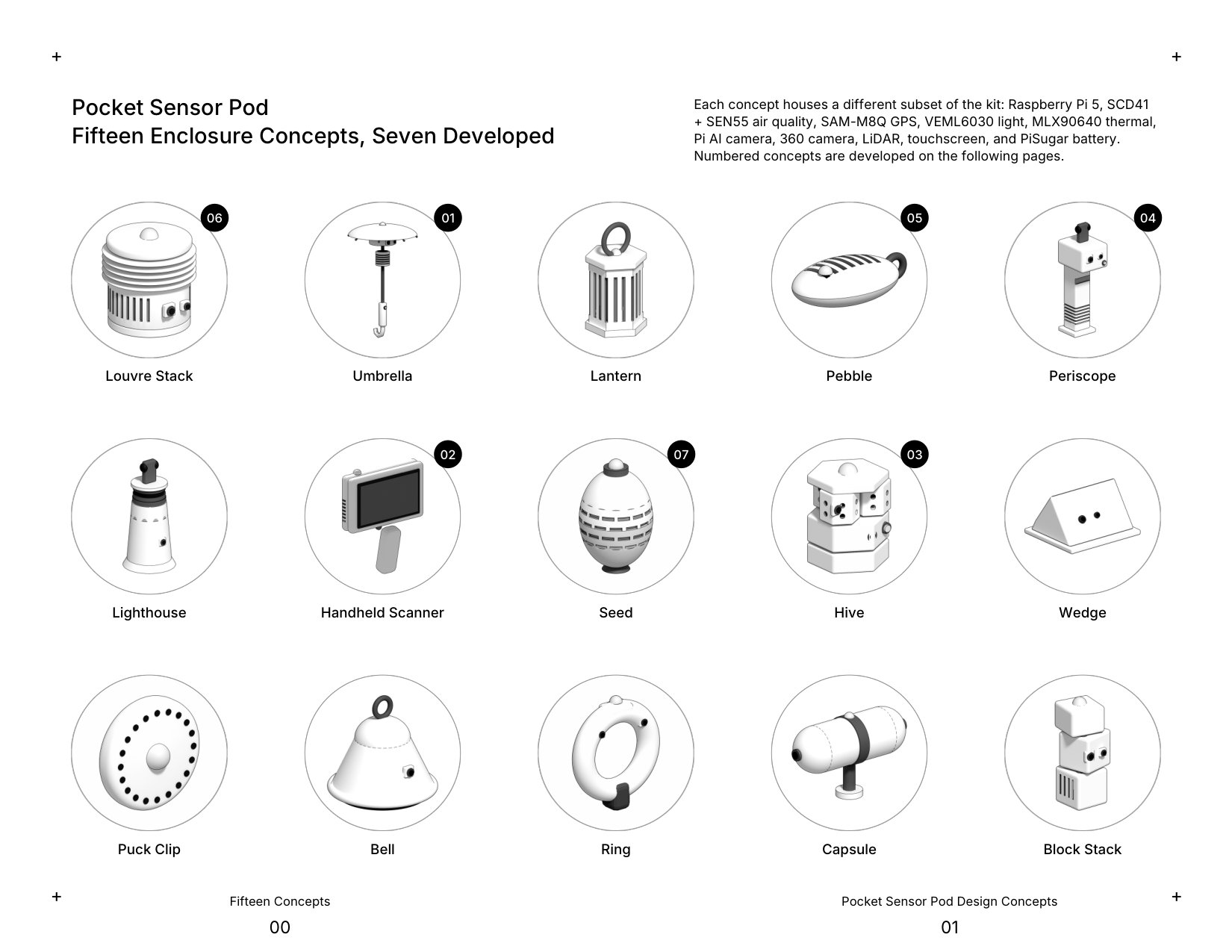

Overview of fifteen enclosure concepts

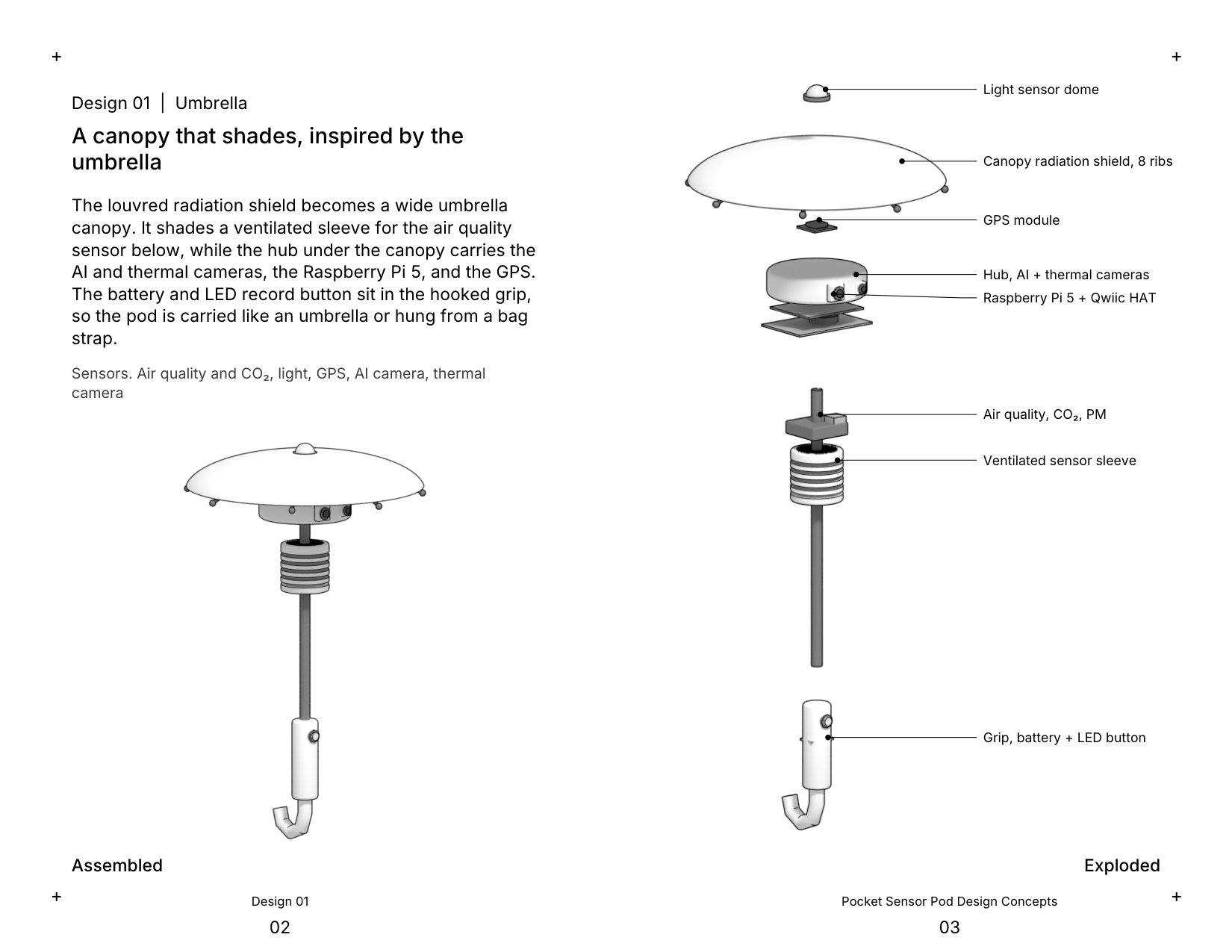

Design 01, Umbrella

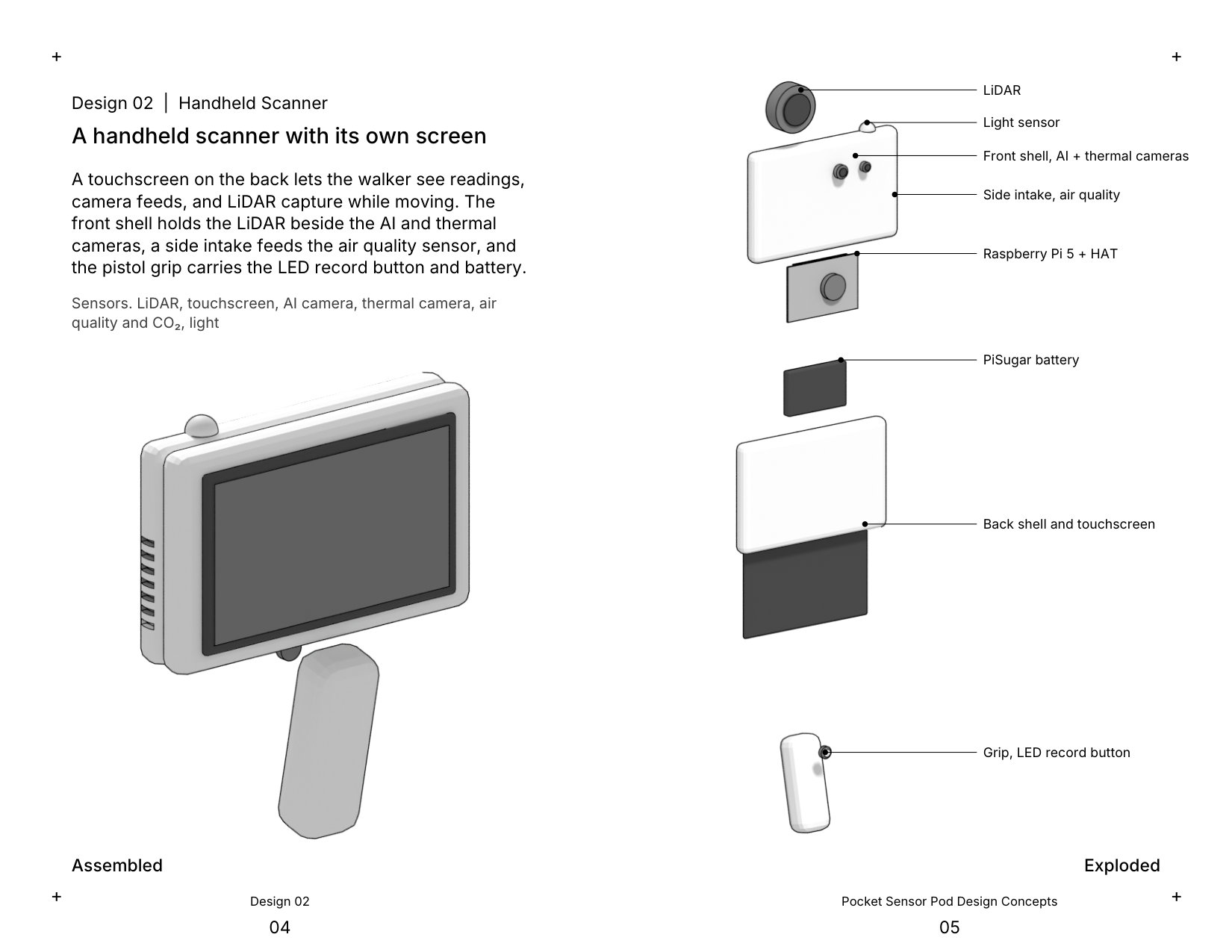

Design 02, Handheld Scanner

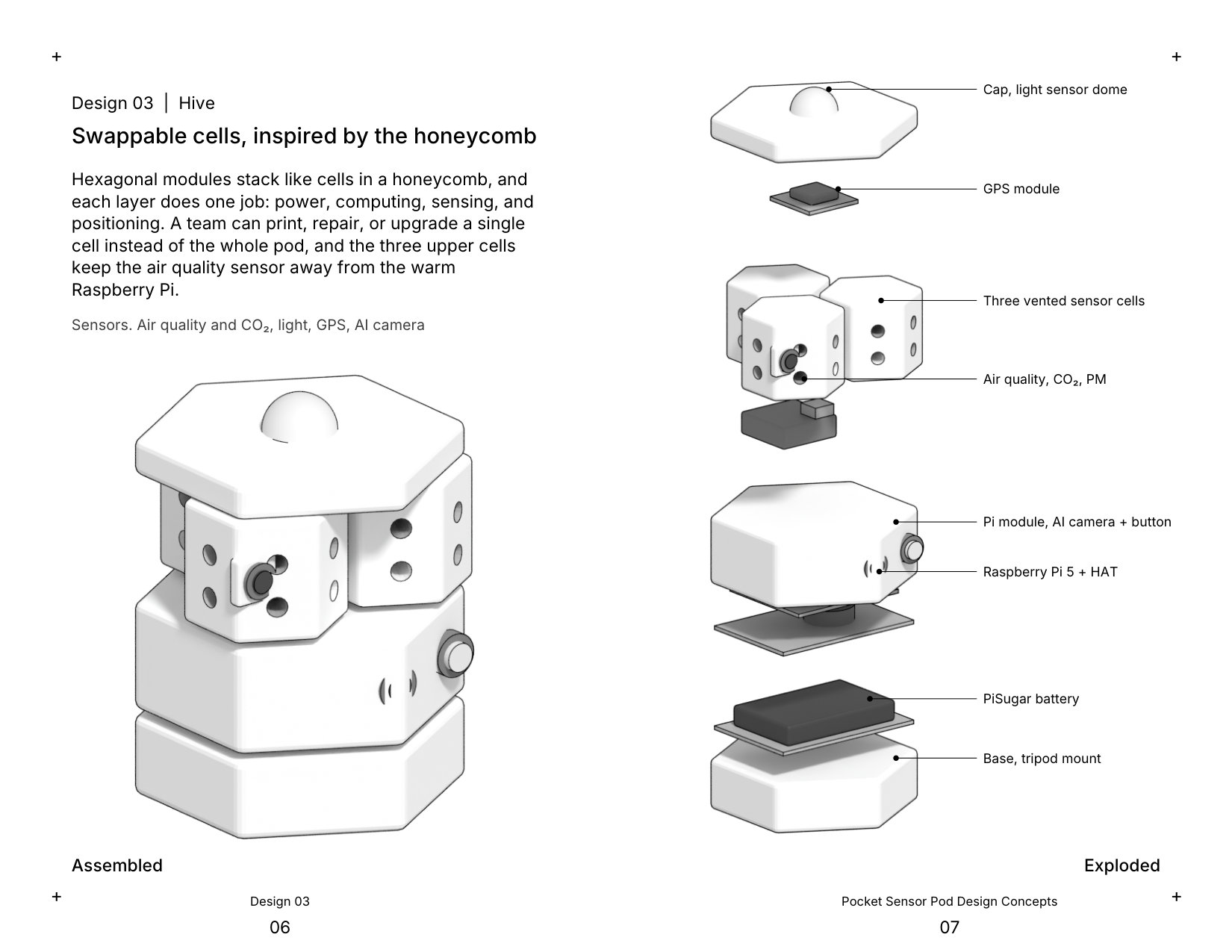

Design 03, Hive

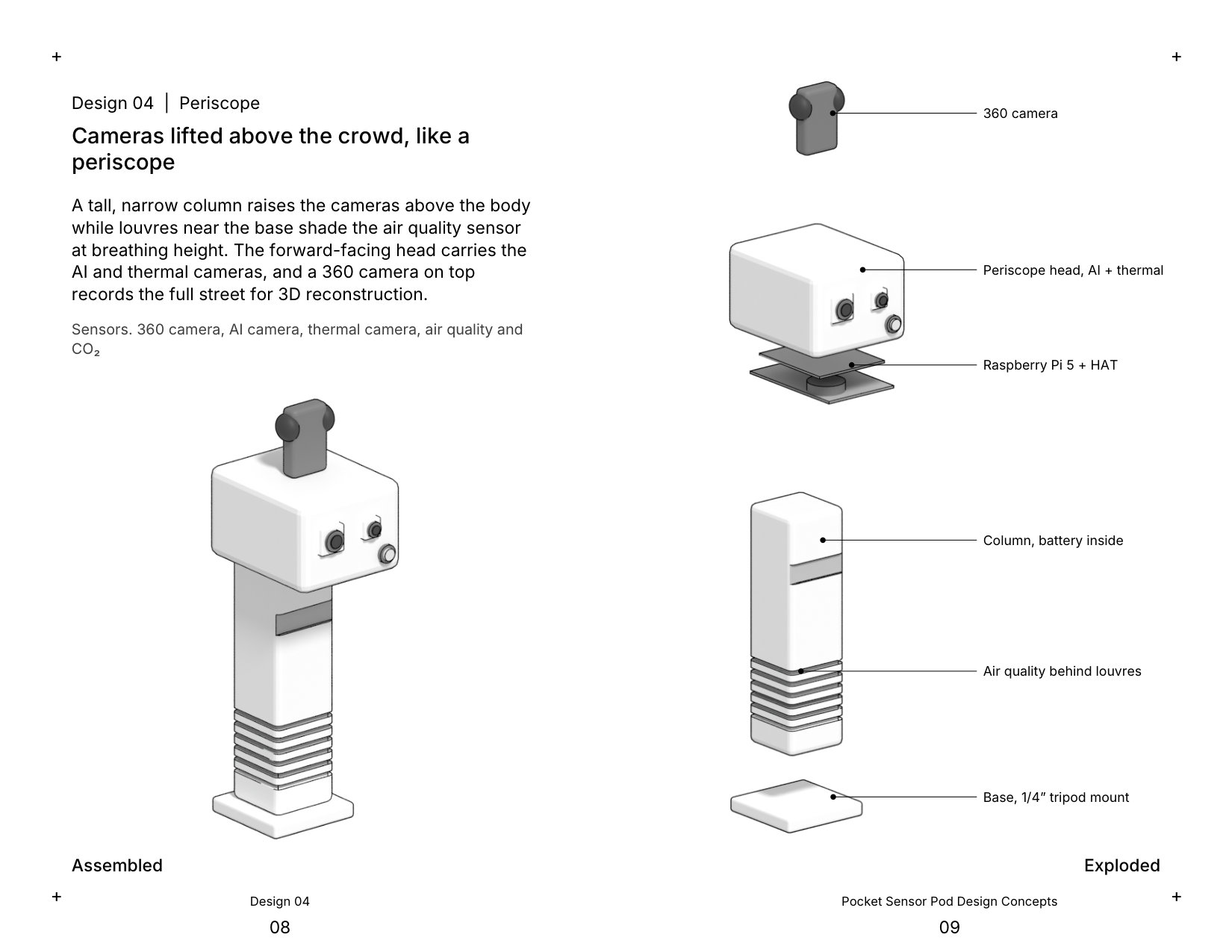

Design 04, Periscope

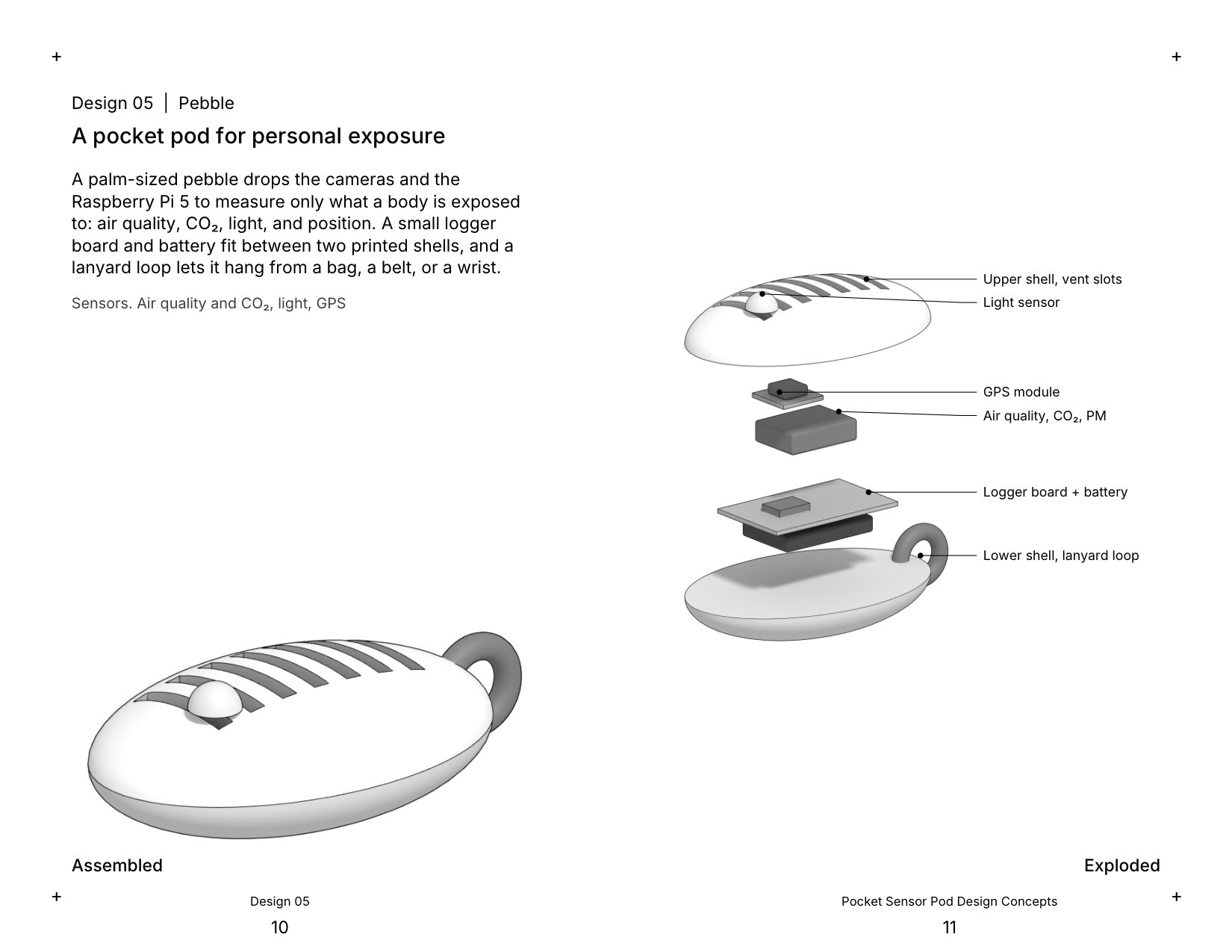

Design 05, Pebble

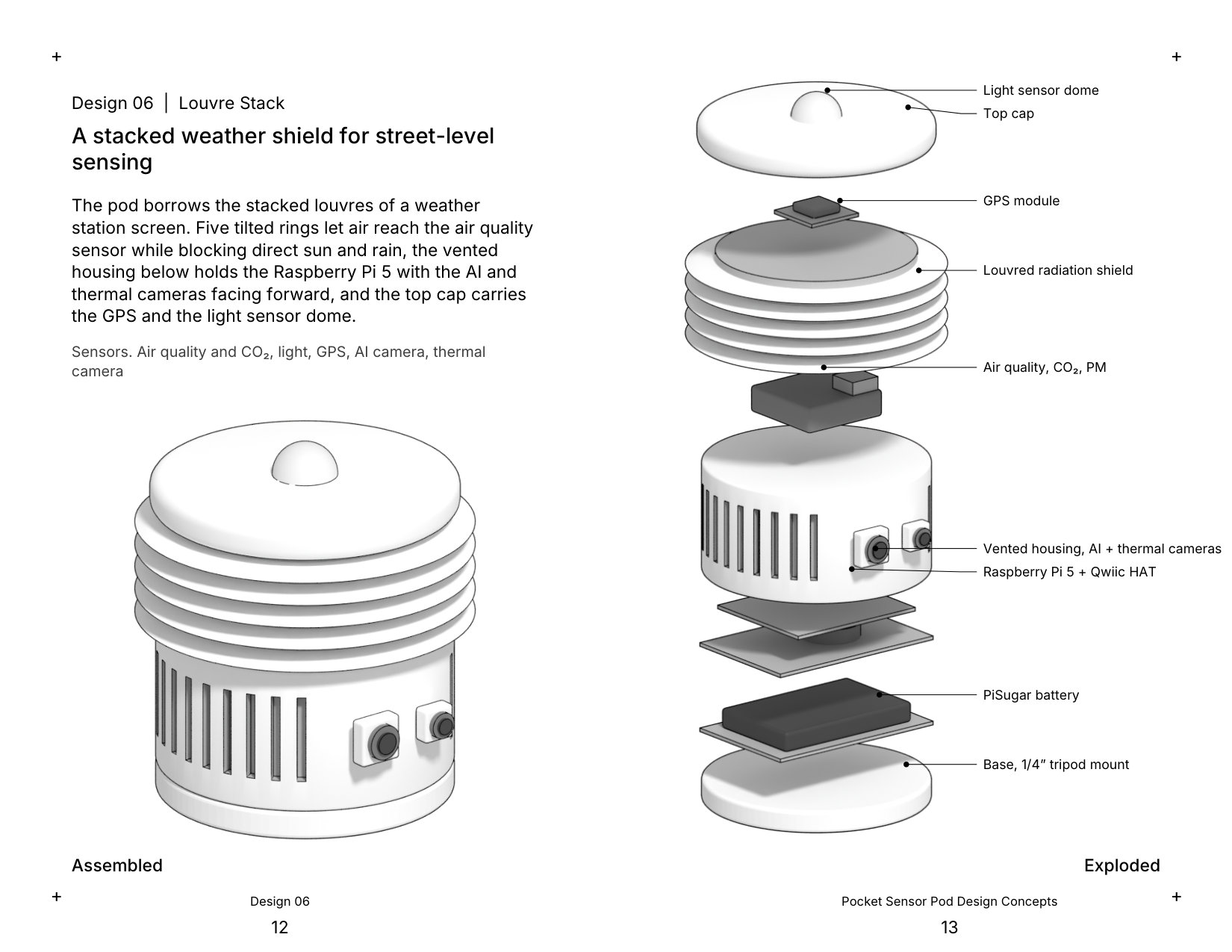

Design 06, Louvre Stack

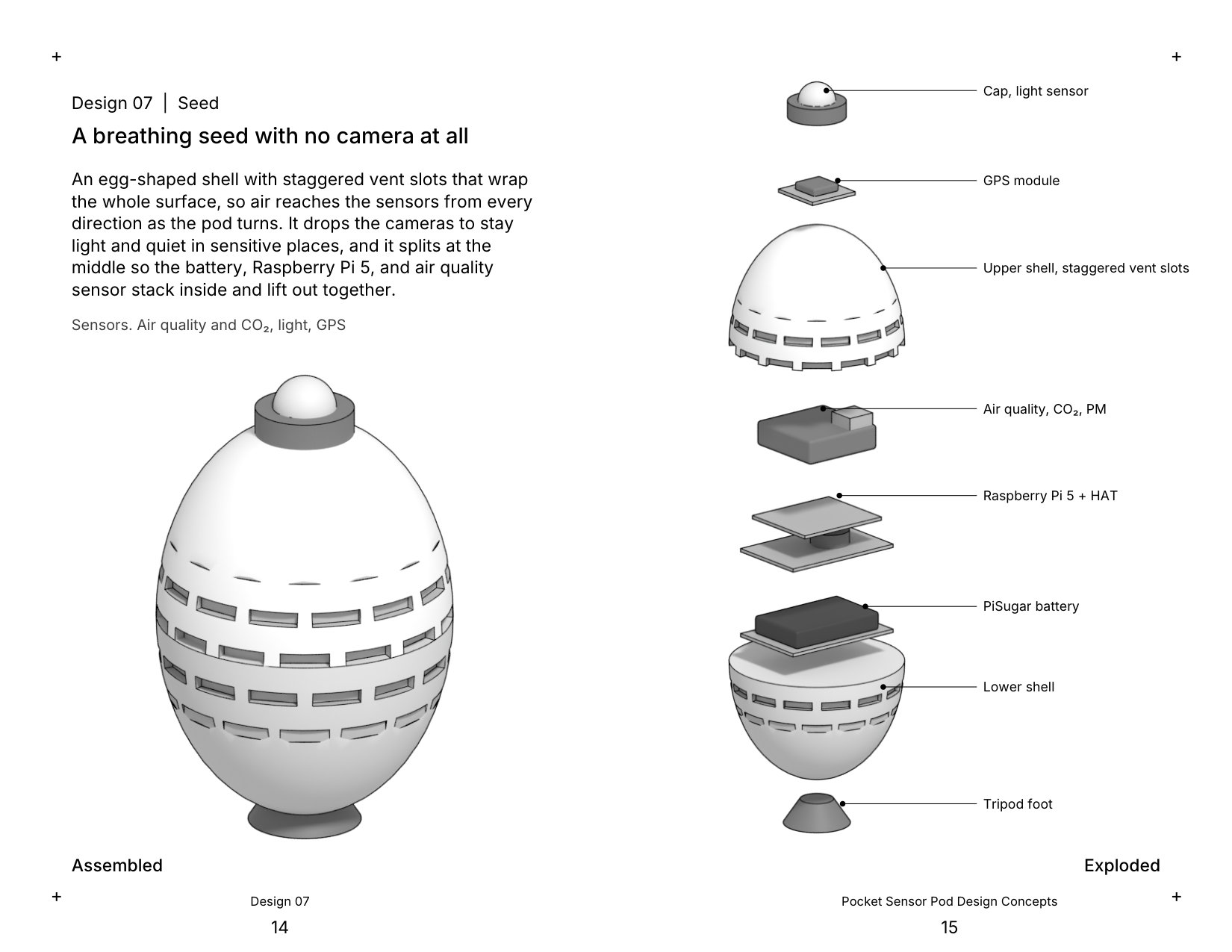

Design 07, Seed
